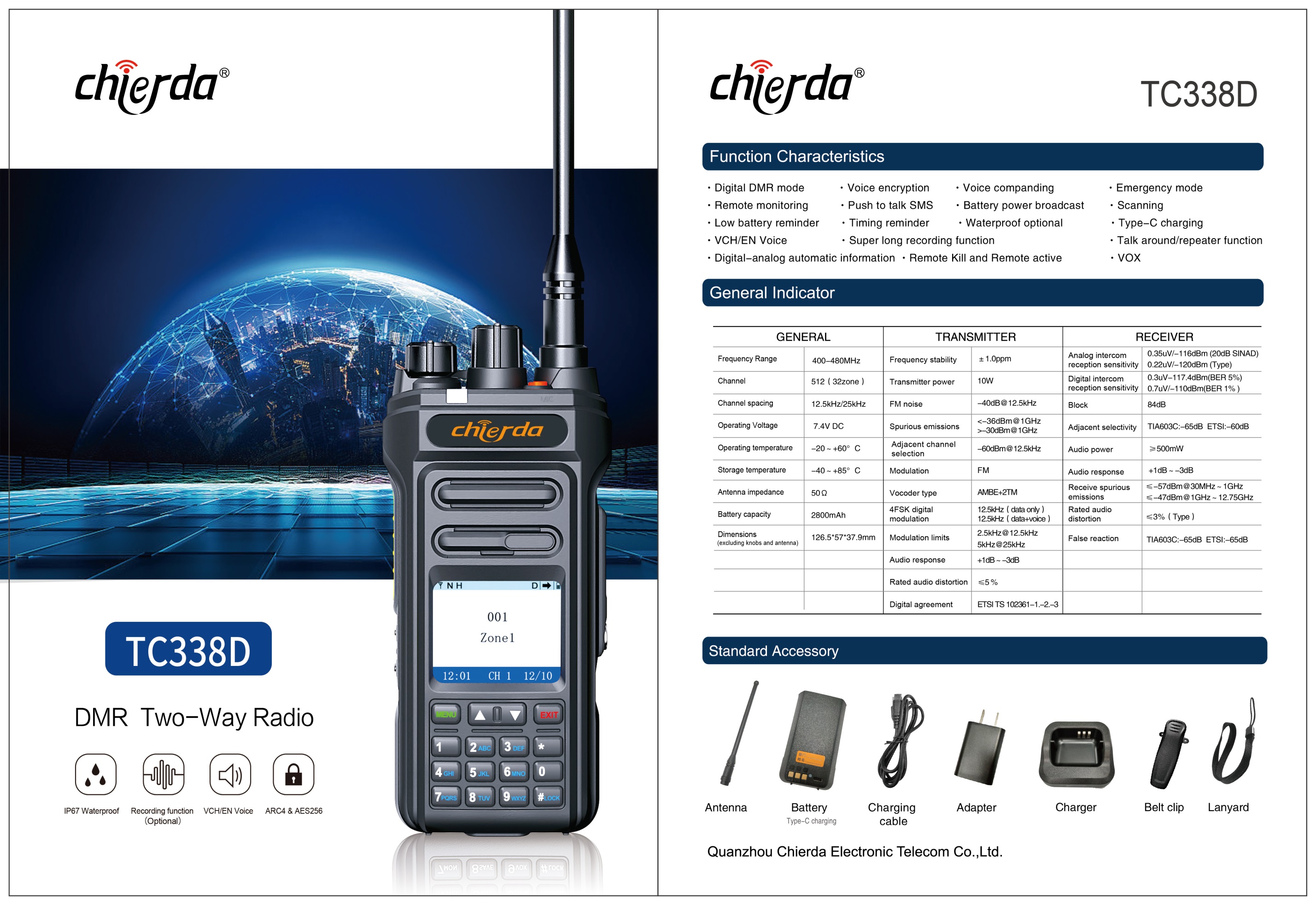

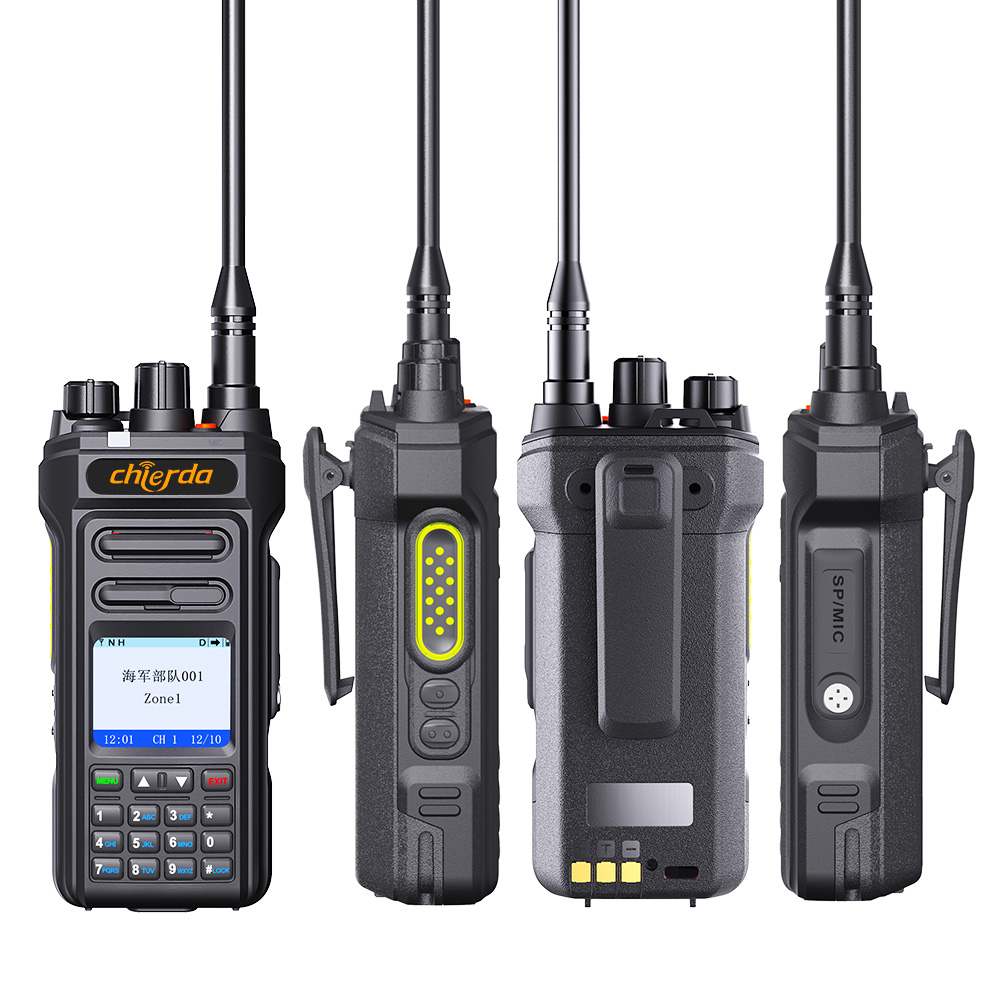

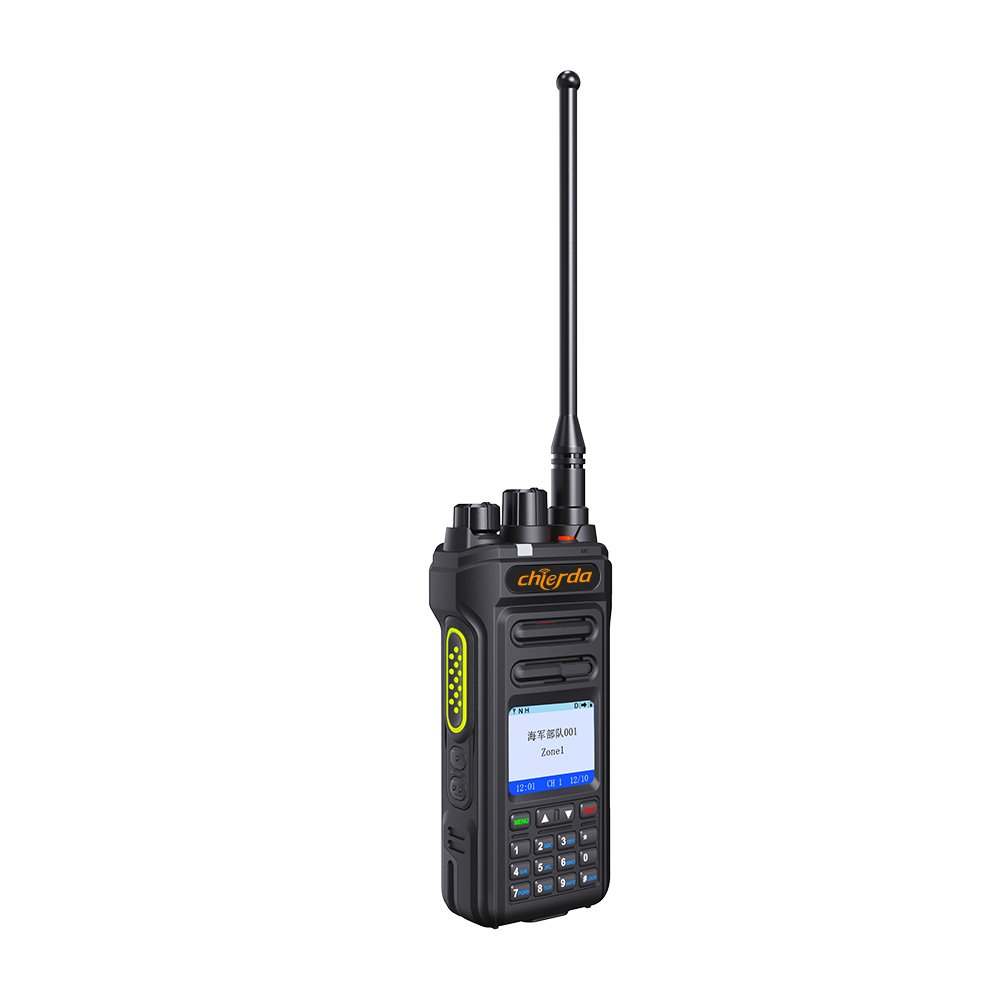

Chierda TC338D AES256 Encryption DMR Radio
TC338D
1. 10W High Power DMR Radio, Digital & Analog Mode Combined

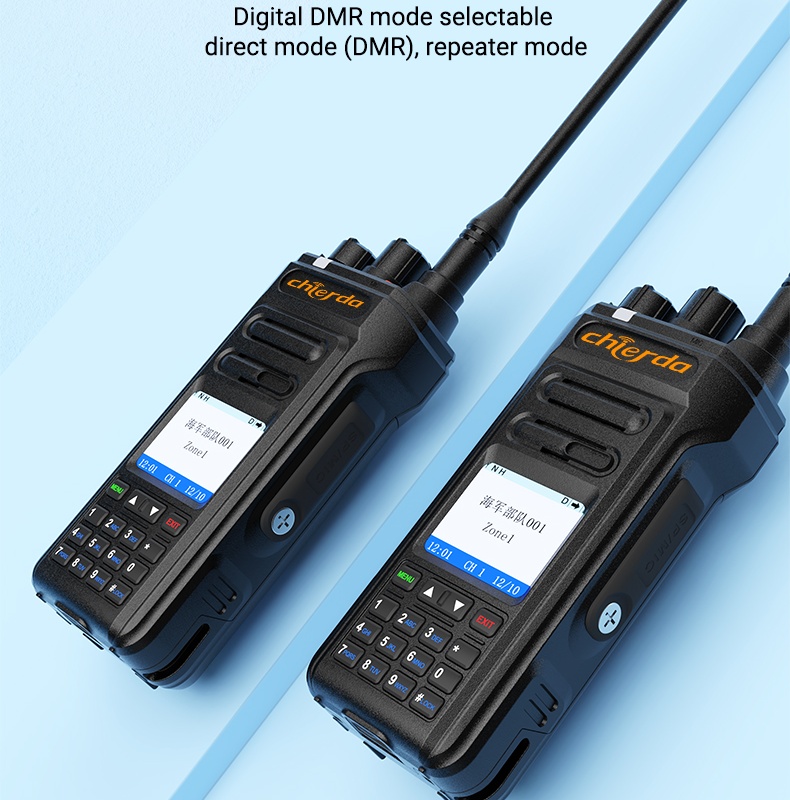

2. Talk around/repeater function
3. ARC 4, AES128, AES256 Encryption
4. Remote Monitoring
5. Emergency SOS Function
6. VOX Hands-free Function, Voice Compander
7. Type-C Charging
8. IP67 Waterproof (Optional)
9. AI-based Noise-cancelling (Optional)

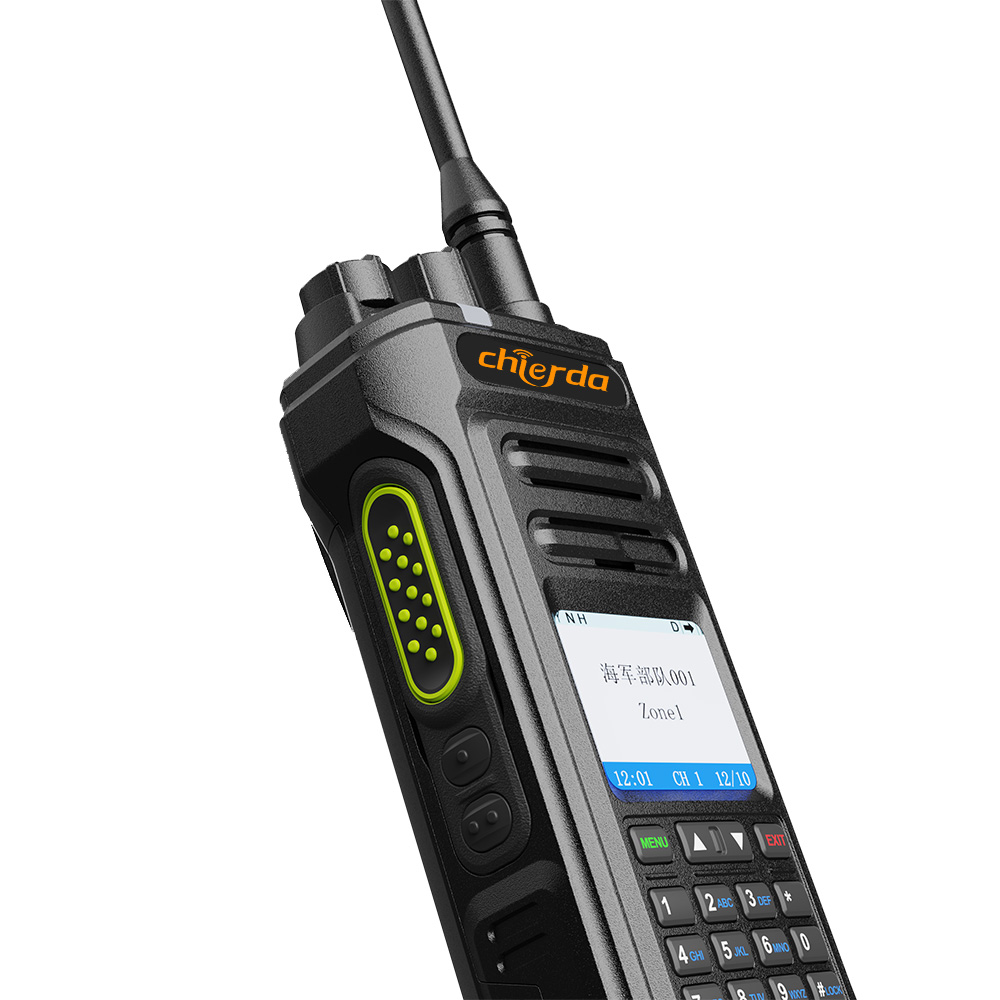

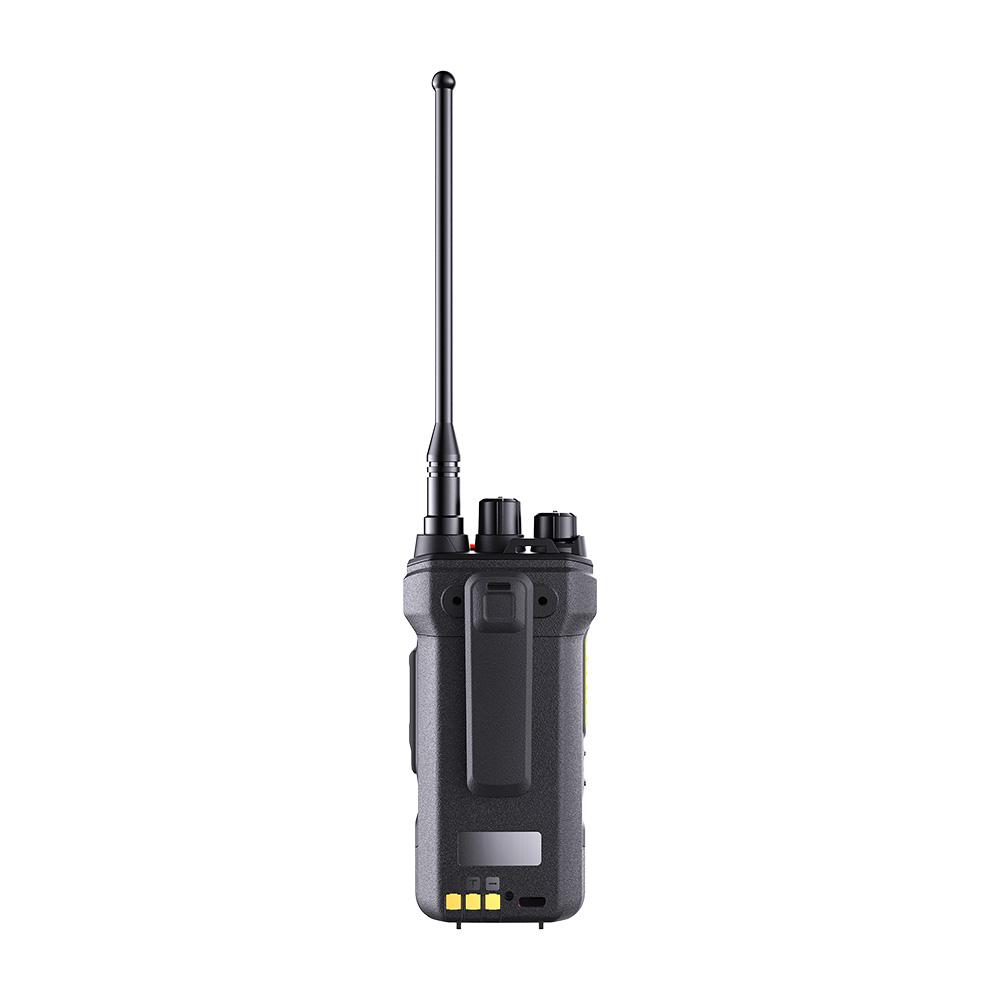

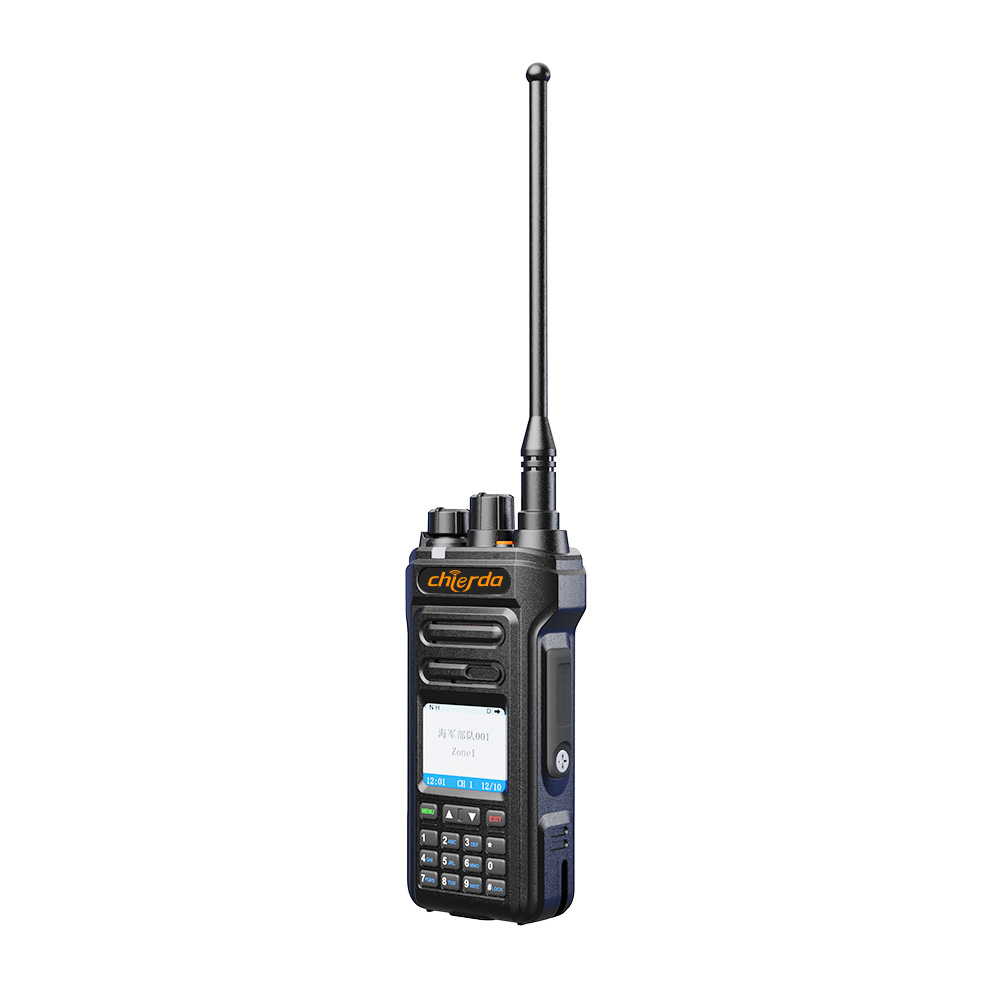

Chierda TC338D is powerful. As an encrypted DMR radio, it seamlessly switches between digital and analog modes, adapting to any communication need. Boasting an IP67 waterproof rating and rugged build, it thrives in tough construction sites or outdoor adventures. Its 2800mAh battery guarantees all-day operation, eliminating the hassle of constant recharging. With a full-keyboard and LCD display, the information and operation are intuitive . A top pick for pros seeking durable, high-performing radios across industries.
Waterproof and Dustproof
TC338D has IP67 rated waterproof and dustproof performance. It can against 0.1μm dense dust and 2-meter drop to easily face all kinds of complex and harsh environments.Long-time Recording and Playback Function:
TC338D two way radio can store more than 500 hours of recording and also support users to playback these records both via PC and the handset.
Digital and Analog Modes Integration:
TC338 DMR radio is analog and digital modes combined. It offers unparalleled flexibility, allowing users to leverage the enhanced clarity, security, and efficiency of digital communication when needed, while seamlessly switching to analog mode in areas with limited digital coverage.SPECIFICATION | |
Frequency Range | UHF:400-480MHz or |
Channels | 512(32 zone) |
Channel Spacing | 12.5kHz/25kHz |
Antenna Impedence | 50Ω |
Operating Temperature | -20℃+60℃ |
Storage temperature | -40℃+85℃ |
Operating Voltage | DC 7.4V |
Battery Type | 2800mAh Li-ion |
Dimension | 126.5*57*37.9mm |
TRANSMITTER | |
Output Power | 10W |
Frequency Stability | ±1.0ppm |
Adjacent Channel Power | -60dBm@12.5kHz |
Modulation Mode | FM |
Modulation limits | 2.5kHz@12.5kHz |
Audio Distortion | ≤5% |
Vocoder Type | AMBE+2TM |
4FSK Digital Modulation | 12.5kHz(data only) |
| 12.5kHz(data+voice) |
Digital Protocol | ETSI TS 102361-1.-2.-3 |
FM Noise | -40dBm@12.5kHz |
Spurious emissions | ＜-36dBm@1GHz |
RECEIVER | |
Analog Receiver Sensitivity | 0.35uV/-116dBm(20dB SINAD) 0.22uV/-120dBm(Type) |
Digital Receiver Sensitivity | 0.3uV-117.4dBm(BER 5%) |
Blocking | 84dB |
Adjacent Channel Selectivity | TIA603C:-65dB ETS1:-60dB |
Audio Frequency Power | ≥500mW |
Audio Response | +1dB~-3dB |
Receiving Spurious Transmitting | ≤-57dBm@30MHz~1GHz |
| ≤-47dBm@1GHz~12.75GHz |
Audio Distortion | ≤3%(Type) |
| False reaction | TIA603C:-65dB ETS1:-65dB |

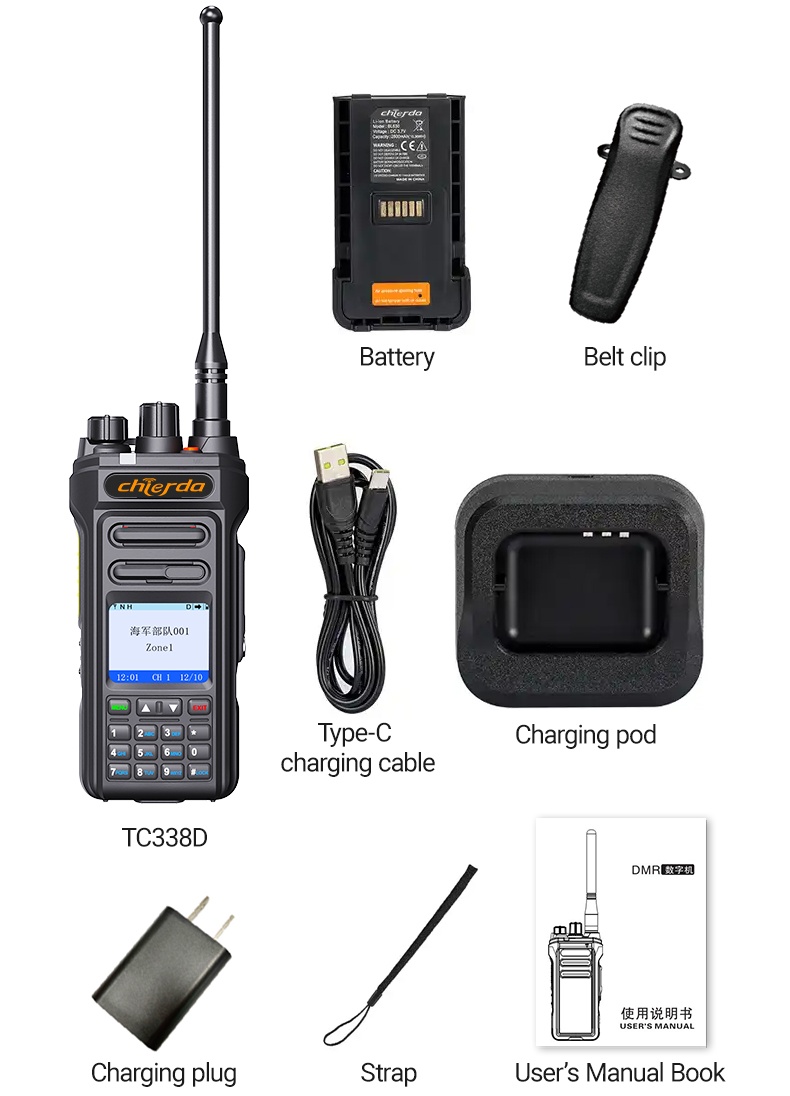

Product set
Radio*1
Battery*1
Belt clip*1
Desktop Charger*1
Hand Strap*1
Antenna*1
User's manual*1
