Chierda T158 Anti-Magnetic Speaker Long Range Walkie Talkie
Chierda T158 Anti-Magnetic Speaker Long Range Walkie Talkie
Chierda T158 Anti-Magnetic Speaker Long Range Walkie Talkie Chierda T158 Anti-Magnetic Speaker Long Range Walkie Talkie Chierda T158 Anti-Magnetic Speaker Long Range Walkie Talkie Chierda T158 Anti-Magnetic Speaker Long Range Walkie Talkie Chierda T158 Anti-Magnetic Speaker Long Range Walkie Talkie Chierda T158 Anti-Magnetic Speaker Long Range Walkie Talkie Chierda T158 Anti-Magnetic Speaker Long Range Walkie Talkie Chierda T158 Anti-Magnetic Speaker Long Range Walkie Talkie Chierda T158 Anti-Magnetic Speaker Long Range Walkie Talkie

Chierda T158 Anti-Magnetic Speaker Long Range Walkie Talkie

T158

1. PC Material Made, Exceptional Durability

2. Anti-magnetic Speaker, Advanced Audio Quality

3. 10W High Power, Long Range Radio

4. Quick Pairing, Wireless copy, Scan

5. Alarm Function (Local & Remote)

6. Upgraded Belt Clip design

7. Dual Antenna (Long and short)

8. VOX Hands-free Function

9. IP54 Splashproof

10. 16 Customized Channels

11. Optional Function: IP67 Waterproof, Hidden Display, AI-based Noise Reduction, Bluetooth Compatible, Type-C charging port on the handheld device

Features

Designed to excel in industrial settings, Chierda T158 two-way radio sets new benchmarks for communication. With advanced anti-magnetic speaker, it ensures crystal-clear audio even amidst the most challenging conditions in manufacturing plants. It is ideal for use in security team, emergency rescue, first responders, outdoor, supermarket, park.

Features

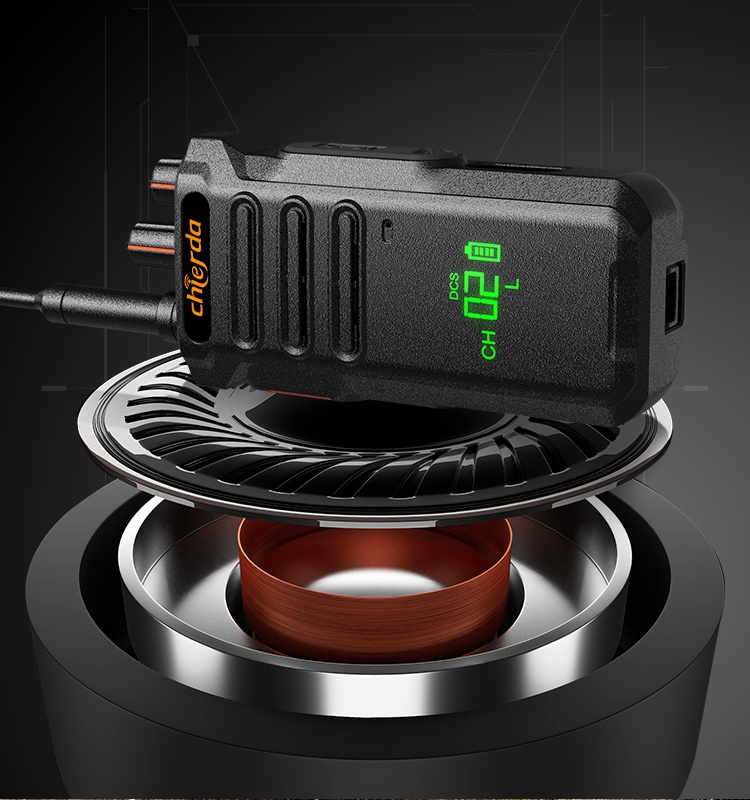

Superior Audio:

T158 walkie talkie is upgraded with an anti-magnetic speaker, which can shield against iron filings in steel mills and flour dust in processing plants. In that case, audio quality is still high.

Rugged Construction:

T158 is made of high-strength PC material, providing exceptional durability. It is drop-resistant and shockproof. The leather-like texture is matte and bright in dark black. While the volume and channel knobs, and PTT button are all colored vibrant orange.
Features
Features

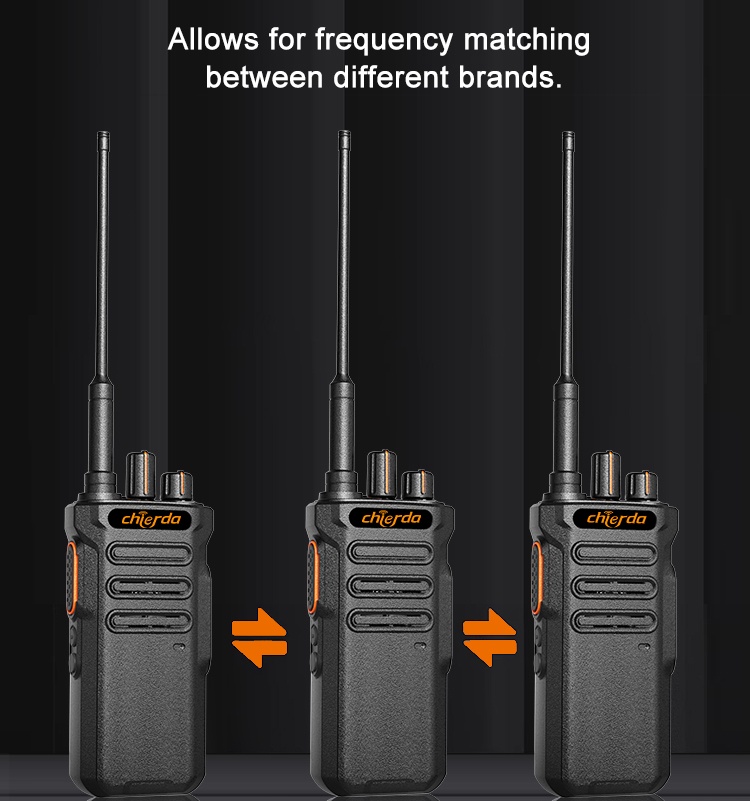

Quick Pairing:

T158 allows for one-key channel copy and frequency pairing. You don't need to manually program the frequency. It has great compatibility and can work with other walkie talkies.

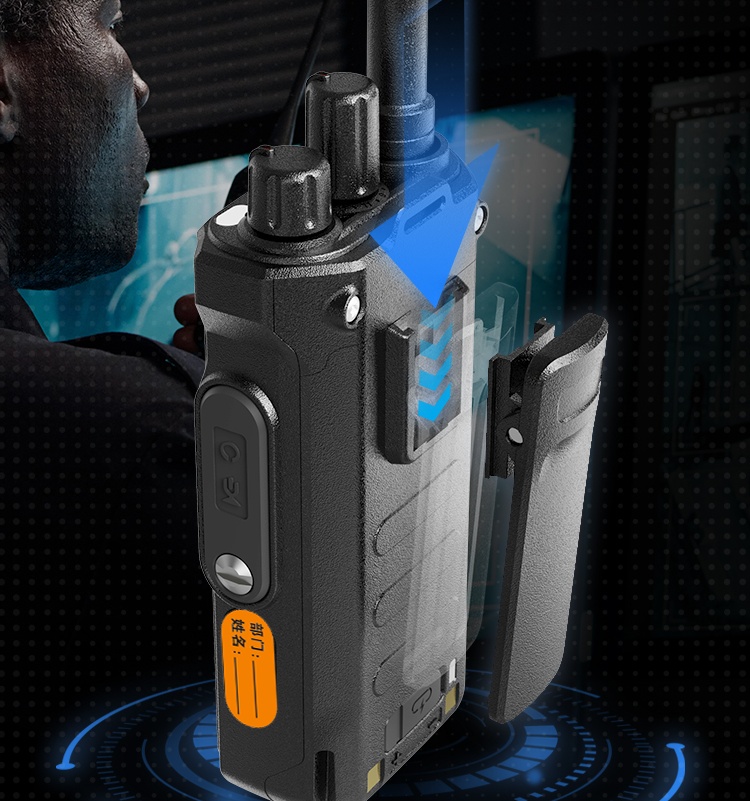

New Belt Clip Design:

T158 adopts a new belt clip design, which allows you to directly insert the belt clip and hear a click, and then done. You don't need to worry about screwing anymore.
Features
Features

Optional Functions:

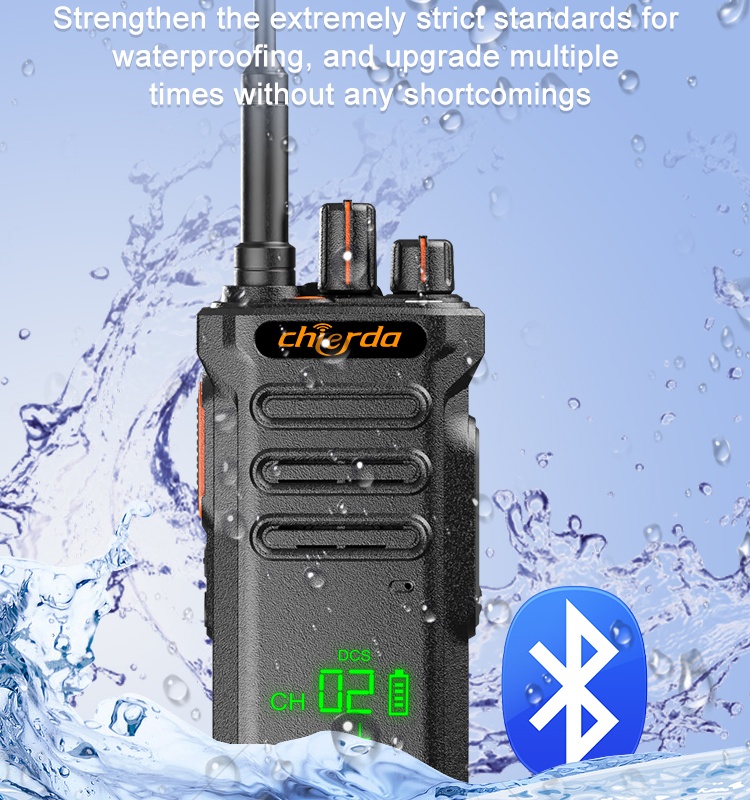

-IP67 Waterproof and dustproof: Upgrade IP54 splashproof to IP67 waterproof. It can be immersed in 1 Meter Deep Water for 30 minutes and against 0.1 μm dense dust

-Hidden Display: Equip an LED hidden display. The information is intuitive, including channel number and volume.

-AI-based Noise Reduction: Filter noise from the background and deliver crystal clear sound.

-Bluetooth Compatible: Enable Bluetooth connectivity for seamless device pairing.

-Type-C charging port on the handheld device: The radio body can adopt a Type-C charging port. Say goodbye to bulky charging cradles and stay powered up on the go.
Specification

SPECIFICATION

Frequency Range

VHF: 136-174MHz or

UHF:400-480MHz

Channel Spacing

16

Memory Channel

12.5 KHz / 25 KHz

Rated Voltage

7.4V DC

Battery Capacity

2500mAh

Frequency Sensitivity

± 2.5ppm

Antenna Impedance

50Ω

Dimension

120x54.4x33mm
(Without Antenna)

TRANSMITTER

Output Power

10W

Current

≤1.3A

Modulation Distortion

<5%(300-3000Hz)

Maximum Frequency
Deviation

≤ 5KHz/≤ 2.5KHz

CTCSS Frequency
Deviation

0.75KHz± 50Hz

Remanent Radiation

≤7uW

Modulation Mode

FM

Remanent Modulation

≤-35dB

RECEIVER

RF Sensitivity

≤ 0.25uV/ ≤ 0.3uV

Silent Sensitivity

≤0.2uV/≤0.25uV

Audio Frequency Power

≥300mW

Audio Distortion

≤5%

Modulation Receiver
Bandwidth

±7KHz

Spurious Rejection

≥55dB

Selectivity

≥65dB

Intermodulation

≥60dB

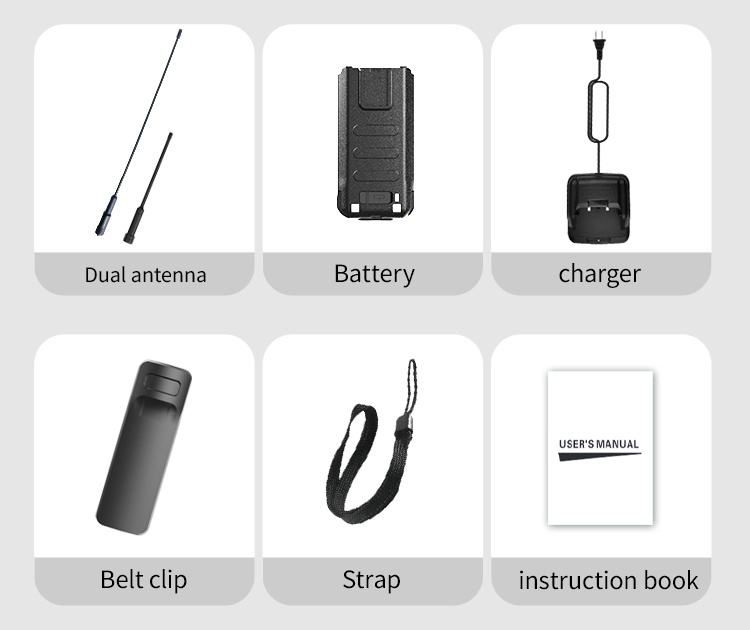

Whats in the Box
whats in the Box

Product set

Radio*1

Antenna*2

Battery*1

Belt clip*1

Charging cradle*1

Hand Strap*1

User's manual*1
