Chierda P6 Android 5000km Talk 2G/3G/4G LTE PoC Radio
P6

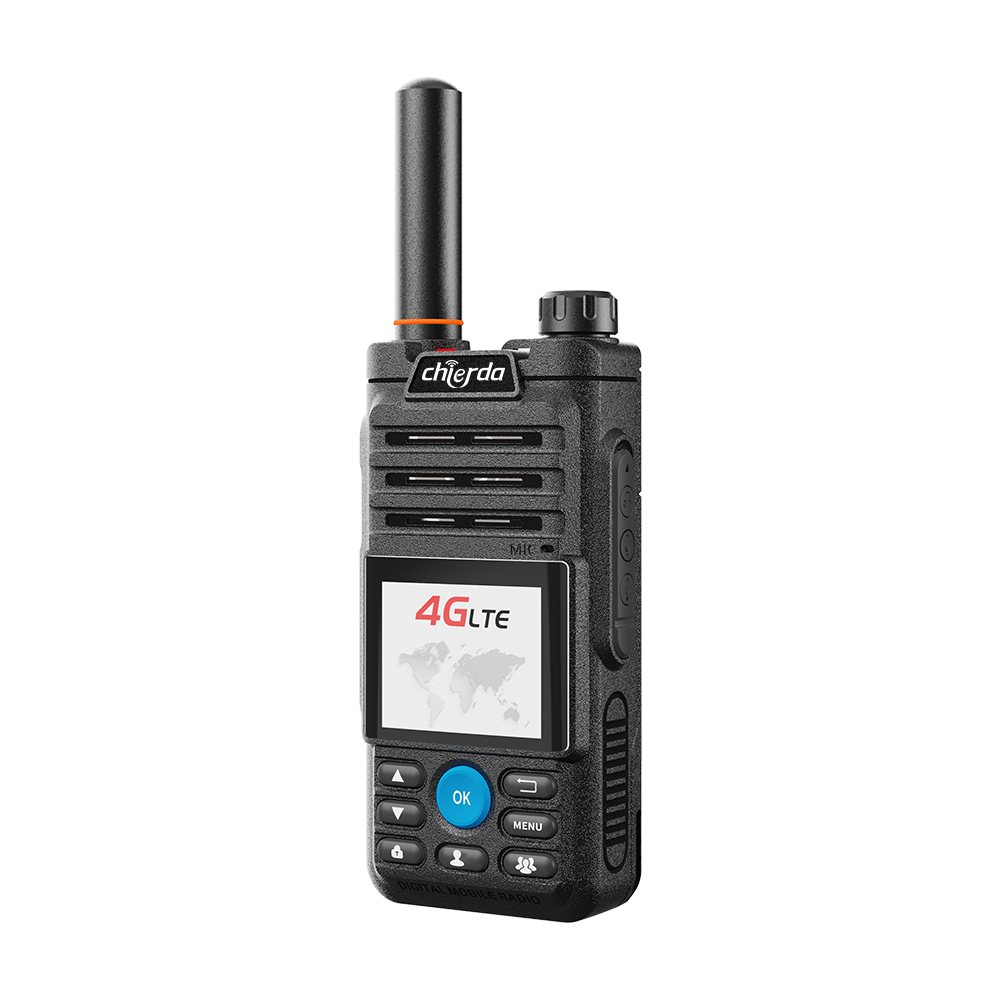

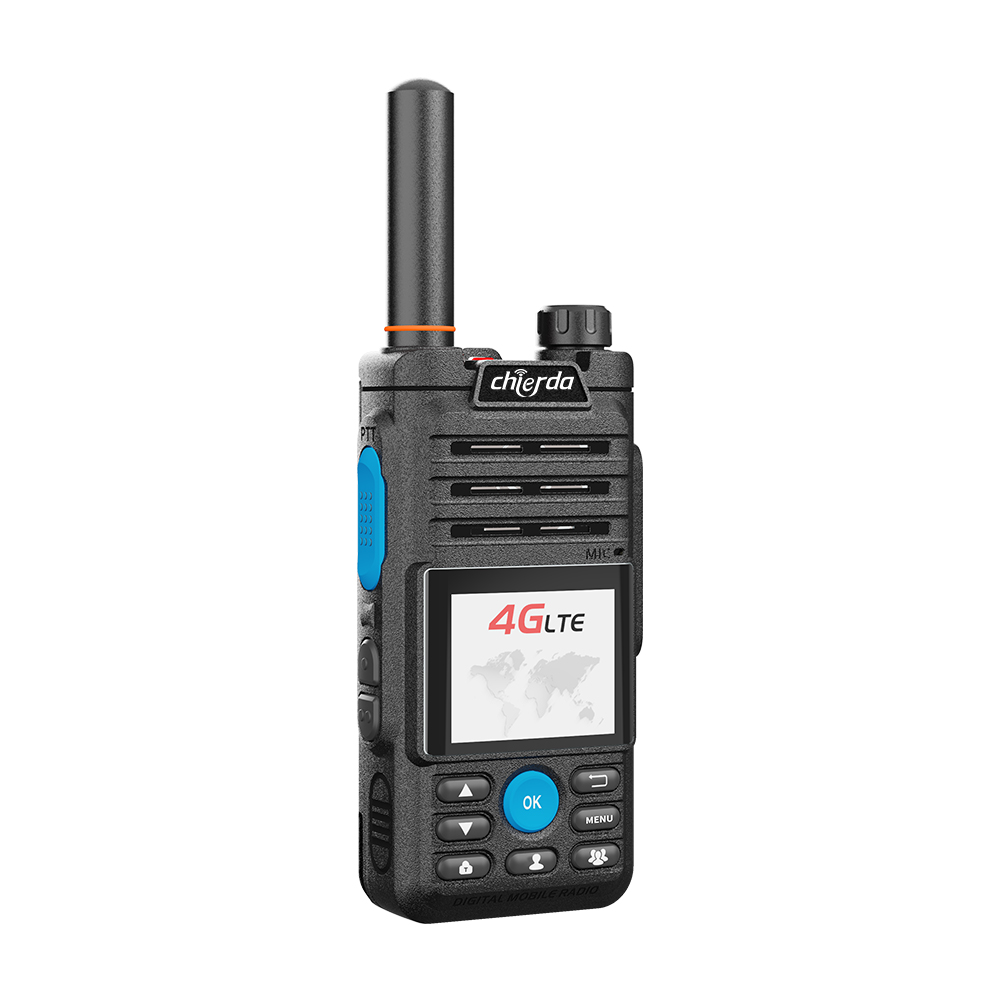

Chierda P6 is a push-to-talk over cellular (PoC) radio and provides communications over 2G/3G/4G network. It can truly achieve 5000km long-range talk across the whole nation. It features 1.77‘’ SPI color screen for easy operation.

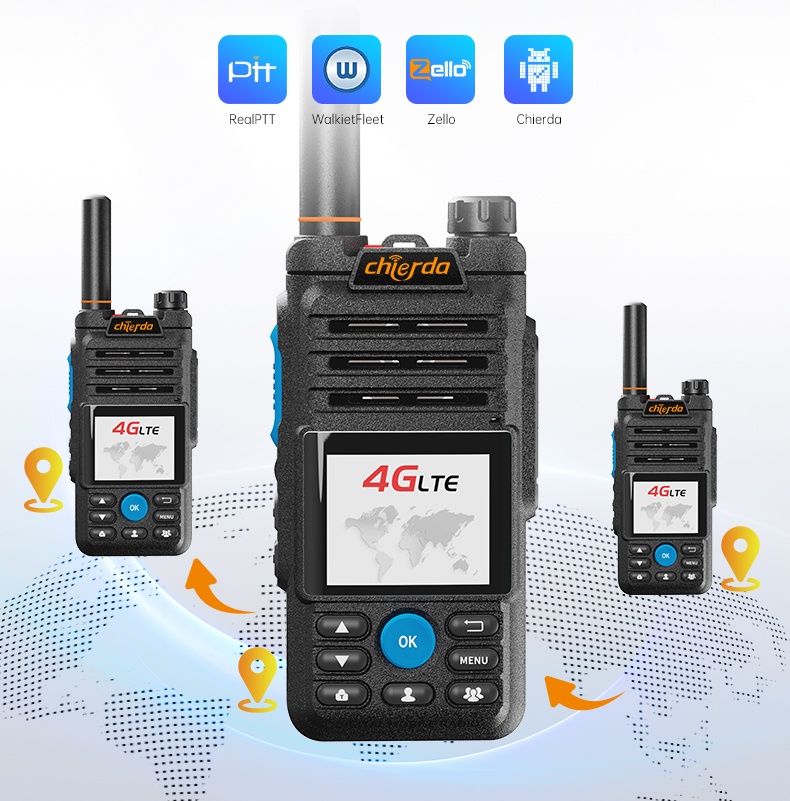

Zello Platform:

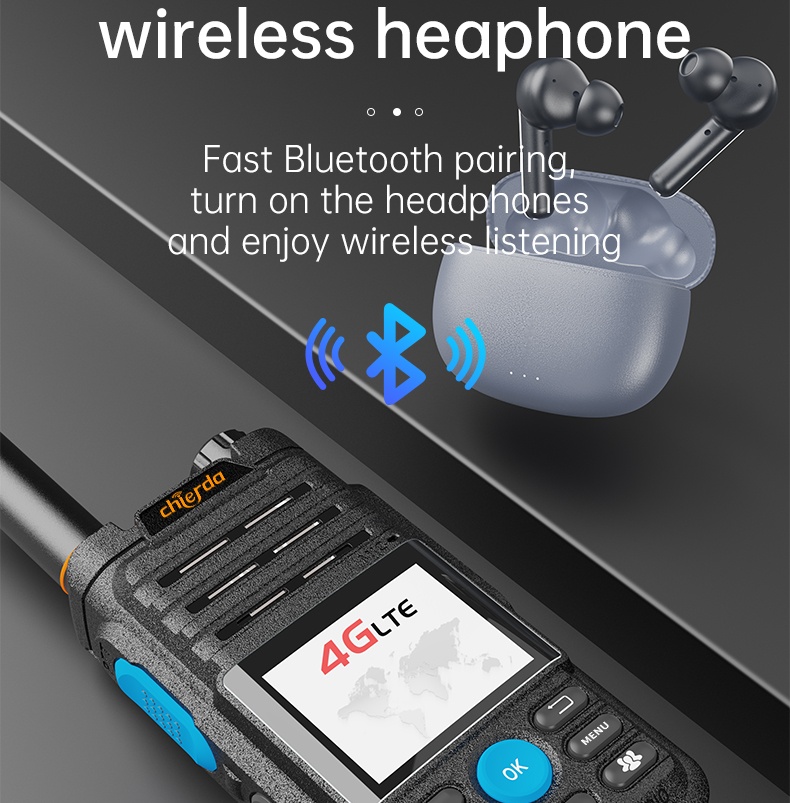

P6 radio supports Zello, RealPTT, and many other platform.Bluetooth Function:
P6 radio allows for Bluetooth connection, which is stable and fast. You can pair the radio with wireless headphone to enjoy clear sound.

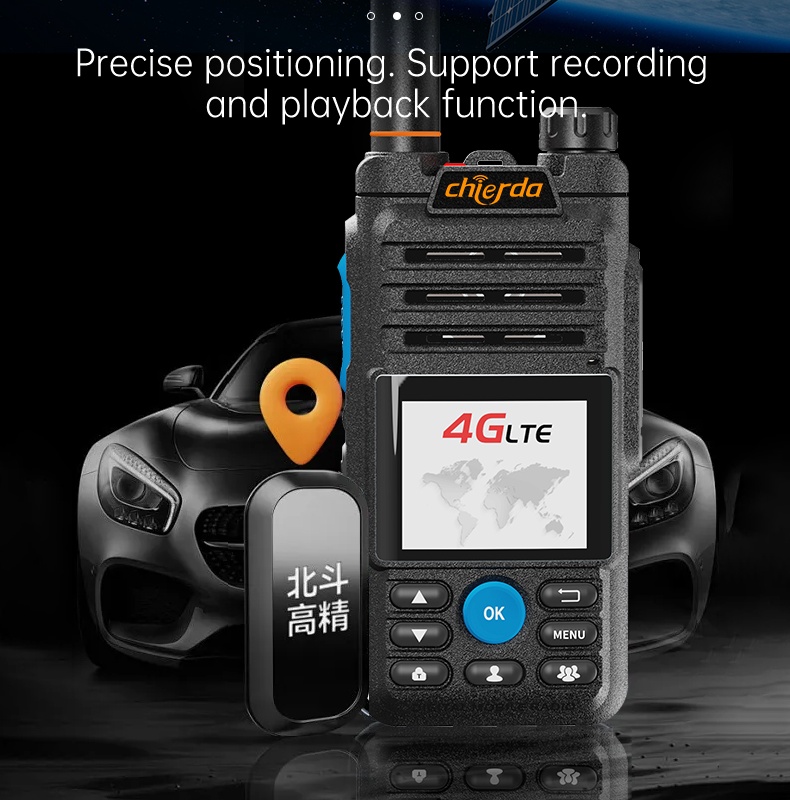

GPS Positining:
P6 supports GPS positioning. You can locate your partners on Google Maps.Wi-Fi Connection:

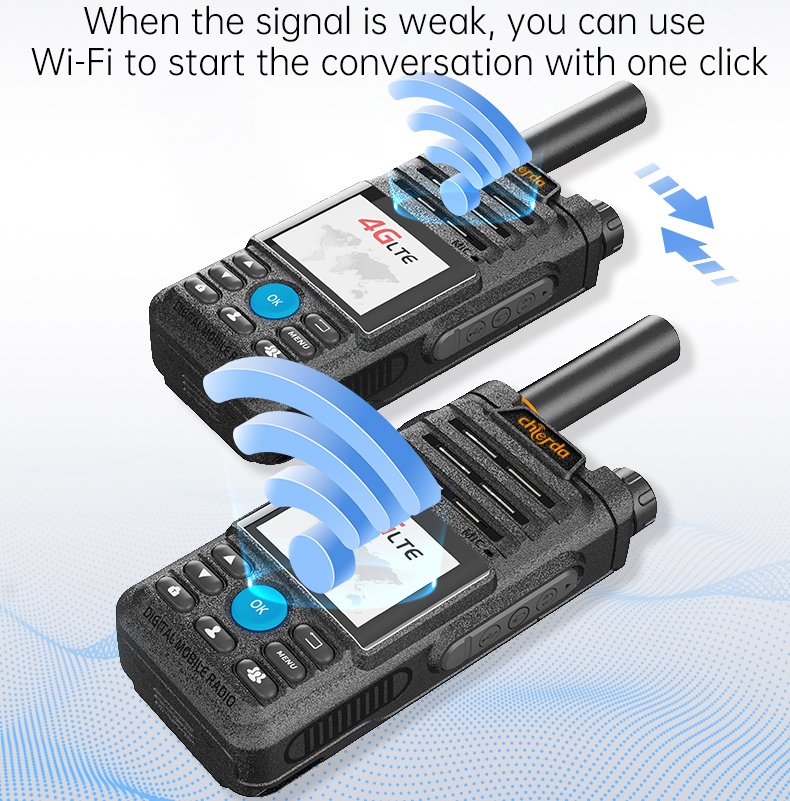

P6 radio supports Wi-Fi connection. When the network is weak, you can connect the wifi to quickly start a conversation. In addition, you can download many applications to enjoy more benefits.
Dimension |
| 121*61*33 mm(L×W×H) |
Weight |
| 198.4g |
Basic configuration | chip | Qualcomm MSM8909 [ Quad Core 1.1Ghz Processor ] |
| frequency band(MHZ) | 2G GSM: 850/900/1800/1900MHz |
| SIM card | Single |
| SMS function | support |
| physical buttons | support |
| side button | support |
| one key intercom | support |
| system | Android 5.1.1 |
| antenna | Built-in full Netcom antenna, built-in Beidou/GPS, WIFI, Bluetooth antenna |
| Operating Voltage | 3.7V |
| Receiver sensitivity | -106dbm |
| Maximum transmit power | 23dBm~25dBm@All up bits |
| range of working temperature | -20——+75 degrees |
| storage temperature range | -40——+85 degrees |
| audio output power | 2W@10% distortion |
Network | 4G | FDD LTE, TDD LTE |
| 3G | WCDMA, TDSCDMA, CDMA2000 |
| 2G | GSM, CDMA |
| Wi-Fi | support |
| Bluetooth | BT 3.0 |
Screen |
| 1.77 inch SPI color screen, resolution: 160*128 |
storage |
| 4GB+512MB |
Capacity (mAh) |
| ≧4000mAh |
charger |
| TBD |
USB cable |
| USB Micro 5Pin |

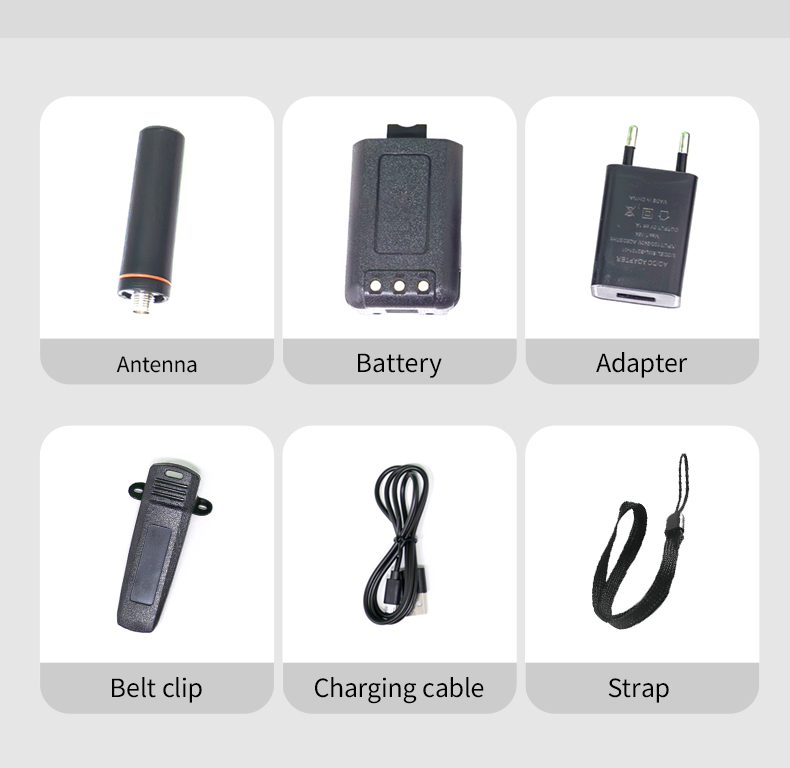

Product set
Radio*1
Battery*1
Strap*1
Charging cable*1
User's manual book*1
Antanna*1
Belt clip*1
Charging plug*1
Battery*1
