You've invested in a quality long range walkie talkie, but you're still asking the classic question: "Can you hear me now?" If you're struggling with fuzzy audio or disappointing range, the problem might not be your radio—it's likely your antenna. The radio antenna is the single most important—and often overlooked—component for unlocking your radio's true performance. This guide will teach you how to choose the right one and maximize radio range.
The Basics: How Does a Radio Antenna Actually Work?
Before we dive into different types, it's helpful to understand what a radio antenna actually does. It's a transducer, a device that converts electrical energy into electromagnetic radio waves, and vice versa.
From Electrical Signal to Radio Wave
When you speak into your radio, your voice is converted into an electrical signal. This signal travels to the antenna, which then radiates it outwards as a radio wave. On the receiving end, the process is reversed. The better your antenna is at performing this conversion, the stronger your signal strength will be over distance.
The Importance of Wavelength and Antenna Length
Radio waves travel at different frequencies, and each frequency has a specific physical length, known as its wavelength. The most efficient antennas are physically tuned to match the wavelength of the radio signals they are designed to transmit and receive.

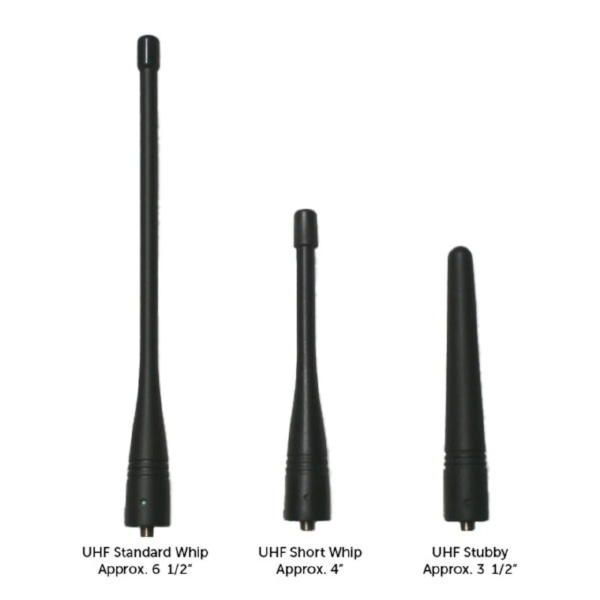

Whip vs. Stubby: Choosing the Right Antenna for the Job
One of the most common questions is about the difference between a long, thin "whip" antenna and a short, thick "stubby" one. The choice in the stubby vs whip antenna debate depends entirely on your priorities.
The Whip Antenna: Built for Maximum Range
A longer whip antenna (typically 6-8 inches) is generally more efficient and provides better performance, especially for maximizing range. Its length is better tuned to the wavelength of the radio frequencies, allowing it to "capture" and transmit signals more effectively.
The Stubby Antenna: Designed for Convenience and Discretion
A short stubby antenna (3-4 inches) is less obtrusive, making it ideal for staff in hospitality or retail who need to maintain a professional appearance. However, this convenience comes at a cost: a stubby antenna will almost always have a shorter communication range than a full-sized whip antenna.
When to Use Which Type for Your Industry
For construction, farming, or emergency response where maximizing range is critical, a whip antenna is the clear winner. For hotels, restaurants, or security in close quarters, the convenience of a stubby antenna might be the better trade-off.
Understanding Antenna Gain: It's Not About More Power
You'll often see antennas advertised with a certain antenna gain, measured in dBi. It's a common misconception that gain is like adding more power to your radio. In reality, antenna gain is about focus. A higher-gain antenna concentrates the radio signal in a specific direction (usually horizontally), much like a flashlight's reflector focuses a light bulb's glow into a tight beam. This allows the signal to travel further in that direction.
A Critical Choice: Matching Your VHF vs. UHF Antenna to the Frequency
This is one of the most critical and non-negotiable rules. Can I use a VHF antenna on a UHF radio? The answer is no, not if you want it to work properly.
Why a VHF Antenna Won't Work Well on UHF Frequencies (and Vice Versa)
As mentioned, antenna length is tuned to a specific wavelength. VHF frequencies have a longer wavelength than UHF frequencies, so their antennas are physically longer. Using the wrong antenna creates a mismatch that severely harms your radio's ability to transmit and can even damage the radio over time.
How to Identify the Right Antenna for Your Radio
Most antennas from a reputable two way radio manufacturer are clearly marked with their frequency band (e.g., "VHF" or "UHF 400-470MHz"). Always ensure the antenna you use matches the frequency band of your radio.
5 Pro Tips to Instantly Maximize Your Radio Range
How to increase walkie talkie range? Beyond upgrading your antenna, here are five simple tricks you can use right now.
- Hold Your Radio Vertically: Most antennas are designed for vertical polarization. Holding your radio straight up and down ensures the best possible transmission and reception
- Get to a Higher Elevation: Radio waves travel largely by line-of-sight. Getting to higher ground can dramatically increase your range by clearing obstacles.
- Clear Obstructions Around You: Move away from buildings, dense trees, and other large obstructions when you need to make a long-distance call.
- Ensure Your Battery is Fully Charged: A low battery reduces your radio's transmit power, which in turn reduces its range.
- Upgrade to a High-Gain Antenna: If you need the best possible performance, replacing your stock antenna with a compatible high-gain model is the most effective upgrade you can make. Explore our range of high-performance radio accessories.
Your Antenna is Key: Unlock Clearer, Longer-Range Communication Today
Don't let a simple component be the weak link in your communication chain. By understanding and choosing the right radio antenna, you can significantly improve your signal strength, extend your coverage, and ensure your messages are heard loud and clear.
FAQ: Your Top Radio Antenna Questions Answered
Can I use any brand of antenna on my Chierda radio?
As long as the antenna is designed for the correct frequency band (VHF/UHF) and has the same physical connector type (e.g., SMA-Female), it should be compatible. However, for guaranteed performance, we always recommend using genuine accessories from the original manufacturer.
How do I know if I need to replace my radio antenna?
How do I know if I need a new antenna? Look for visible signs of damage like cracks in the casing or a bent whip. If you notice a sudden and significant decrease in your communication range, a damaged antenna is often the culprit.
Will a longer antenna always give me more range?
Does a longer antenna mean more range? Generally, yes. A longer antenna that is properly tuned for your radio's frequency will be more efficient and provide better range than a shorter, stubby antenna.
What is the difference between a male (SMA-Male) and female (SMA-Female) connector?
This refers to the connector type where the antenna screws onto the radio. An SMA-Male connector has threads on the inside and a pin in the center. An SMA-Female connector has threads on the outside and a hole in the center. You must ensure your new antenna's connector matches your radio's.
