You have a great team and reliable walkie-talkies, but there's one persistent problem: your signal keeps dropping at the far end of the construction site or on the other side of the farm. Your signal is dropping? It's time to talk about repeaters. When you need to extend walkie talkie range beyond the limits of your handheld devices, a portable radio repeater is the most powerful and effective solution. This repeater setup guide will show you how.
What is a Radio Repeater and How Does it Work?
What is a radio repeater and how does it work? At its core, a radio repeater is a powerful, two-way radio base station that receives a weak signal from a handheld radio and simultaneously re-transmits it at a higher power, over a larger area.
The "Listen High, Talk Low" Principle Explained
The key to a repeater's success is its location. Typically placed at the highest possible point—on a hill, a tall building, or a temporary mast—it has a superior line-of-sight advantage. It can "hear" the weak signal from your handheld far better than another handheld on the ground can.
A Simple Analogy: A Relay Runner for Your Radio Signal
Think of a repeater as a relay runner in a race. Your handheld radio is the first runner, who can only run a short distance. The repeater is the fresh runner waiting in the middle, who catches the baton (your signal) and sprints the rest of the way with renewed strength.
Duplexers and Frequencies: The Magic Inside
A repeater uses two different frequencies at the same time: one to receive (input) and one to transmit (output). A device called a duplexer allows it to do this simultaneously without interfering with itself, enabling seamless, instant communication.
A Step-by-Step Repeater Setup Guide for Beginners
How to set up a radio repeater? It's easier than you think. Our portable models are designed for quick deployment.
Step 1: Choosing the Optimal Location (Hint: Higher is Better)
Find the highest and most central point on your property. Elevation is the single most important factor for maximizing your new radio coverage. Even a small hill or the roof of a barn makes a huge difference.
Step 2: Connecting the Antenna and Power Source

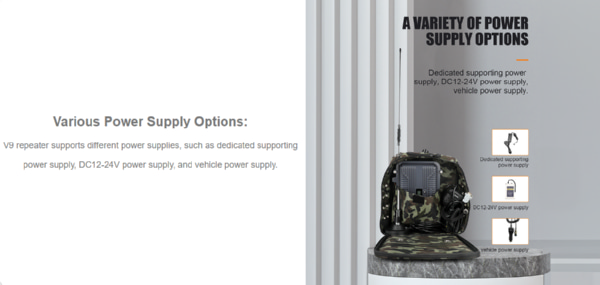

Securely mount your repeater's antenna as high as possible. Connect the antenna cable to the repeater. Then, connect the power source. A portable radio repeater can often be powered by a vehicle battery, a dedicated power supply, or even a solar setup.
Step 3: Basic Programming: Setting Your Transmit and Receive Frequencies
You'll need to program the repeater with its specific input and output frequencies and any required privacy tones (CTCSS/DCS). This is typically done once with a PC and programming cable.
Step 4: Programming Your Handheld Radios to Talk to the Repeater
Now, program your handheld radios. Instead of transmitting and receiving on the same frequency (simplex), you will program them to transmit on the repeater's input frequency and receive on its output frequency.
Why Choose a Portable Radio Repeater?
While permanent repeaters are great, a portable radio repeater offers unique flexibility.
Rapid Deployment for Temporary Events (Festivals, Races)
Set up reliable, site-wide communication for a weekend event in just a few minutes, then pack it up and take it to the next location.

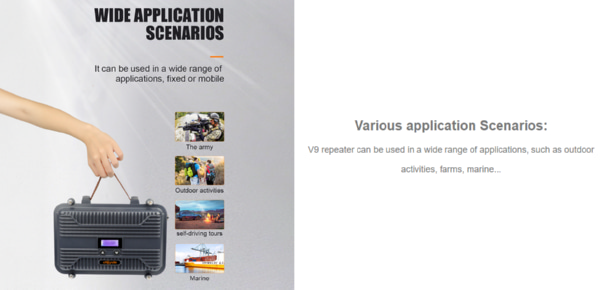

Cost-Effective Coverage for Large Properties (Farms, Ranches)
It's the most affordable way to increase radio range across thousands of acres, making it an ideal farm communication solution.
Flexibility for Evolving Job Sites (Large Construction Projects)
As your construction project grows vertically or horizontally, you can easily move the repeater to a new optimal location to maintain perfect radio coverage.
Finding Your Perfect Match: Chierda's Repeater Solutions
We offer a range of repeaters to match your specific needs and budget.
For Simplicity and Reliability: The V9 Analog Repeater

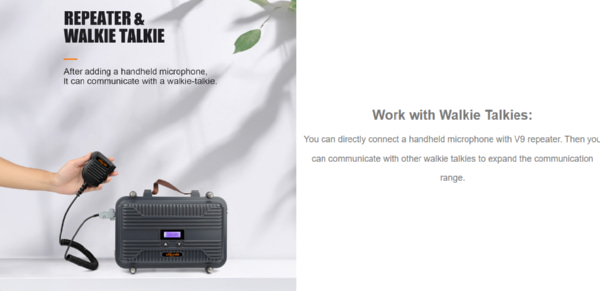

The Chierda V9 is a rugged and reliable analog repeater, perfect for extending the range of your existing analog radio fleet.
For Digital Clarity and Features: The V9D DMR Repeater
If your team uses digital radios, the Chierda V9D dmr repeater provides all the benefits of digital communication—clearer audio and data capabilities—over a much wider area.
For Maximum Power and Durability: The V25 High-Power Repeater
When you need the absolute best in range and durability, the Chierda V25 offers high power (25W) in a weatherproof, portable package.
Stop Shouting Across the Field: Unlock Your True Radio Coverage
Don't let the physical size of your property limit the effectiveness of your team. A portable radio repeater is the key to unlocking seamless, reliable communication across your entire area of operation. It's time to stop worrying about dead zones and start communicating with confidence.
FAQ: Your Radio Repeater Questions Answered
Do I need a special license to operate a radio repeater?
Yes. In most countries, operating a repeater requires a specific GMRS or business radio license. The licensing process is typically straightforward, and the frequencies are coordinated to prevent interference with other users.
What is the difference between an analog repeater and a DMR repeater?
An analog repeater works with traditional analog radios. A dmr repeater is designed for digital (DMR) radios and can handle two simultaneous digital conversations on a single frequency, in addition to offering superior audio clarity.
How much range can I expect to get from a portable repeater?
How much range can I get from a repeater? This varies greatly with antenna height and terrain. A well-placed repeater can easily extend walkie talkie range from just a few kilometers to 20, 30, or even more kilometers.
Can any two-way radio work with a repeater?
Can any radio work with a repeater? No. The radio must be "repeater capable," meaning it can be programmed to transmit and receive on two different frequencies. Most business-grade radios, including all professional models from a trusted two way radio manufacturer, have this capability.
